Schneider XAC Pendant Control Station XACA02
video
Schneider XAC Pendant Control Station XACA02

Schneider XAC Pendant Control Station XACA02

Certification: CCC / GOST
Whether the smart: No
Place of Origin: France
Brand Name: Schneider
Send Inquiry
Product Details ofSchneider XAC Pendant Control Station XACA02

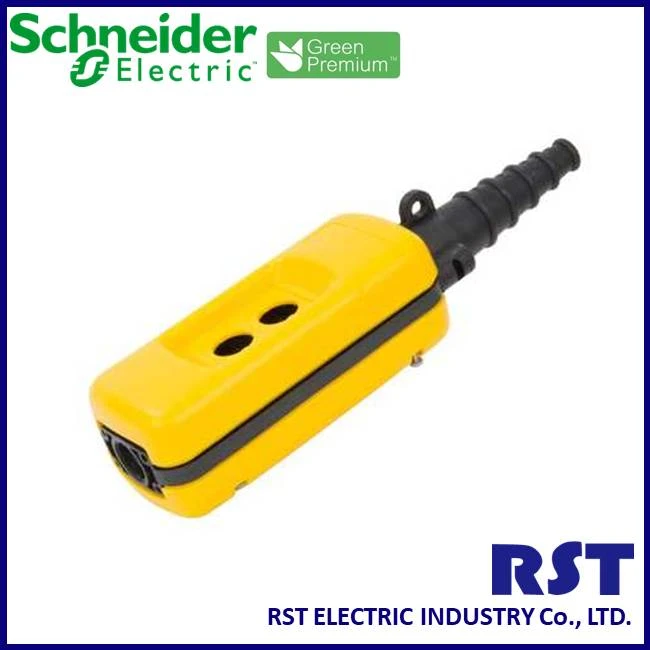

Schneider Empty Pendant Control Station XACA02

XAC, plastic, yellow, 2 cut outs



banner of XACA02

Product Description
>> What are the main features of Schneider Empty Pendant Control Station XACA02?
Main

Range of product
Harmony XAC
Product or component type
Pendant control station
Device short name
XACA
Control station type
Double insulated
Enclosure material

Polypropylene

Electrical circuit type

Control circuit

Enclosure type

Empty enclosure
Number of cut-out

2 cut-outs

Control station colour
Yellow
Cable entry

Rubber sleeve with stepped entry 8…26 mm

Guard rail

Without

Vertical operator cut-out centre

30 mm

>> What condition of the environment could Schneider Empty Pendant Control Station XACA02 be used?
Environment

Standards

CSA C22.2 No 14

EN/IEC 60947-5-1

EN/IEC 60204-32

UL 508

Product certifications

CCC

GOST

Protective treatment

TH

Ambient air temperature for

operation

-25…70 °C

Ambient air temperature for

storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to EN 50102

Mechanical durability

1000000 cycles

>> What is the dimension of Schneider Empty Pendant Control Station XACA02?



Dimension

Height
85 mm
Width
90 mm
Length
350 mm
Net weight
0.44 kg



Certifications

product-533-784

Schneider UL Certification



Schneider TAF Certification



Packing & Delivery

product-549-535



FAQ

Q1: Do you have a catalogue? Can you send me the catalogue to have a check of all your product ?

Yes , We have product catalogs. Please inform your requested brand, model, then we will reply by on line or Email to sending the catalog.

Q2: I need your price list of all your products, do you have a price list ?

Please inform exactly brand, series or specification, then we will try to our best to provide price list of products. Because we have so many items, and need to focus your requested. If you don't have modes, we also can provide catalog for reference.
If you want to check any price of our products, please contact us.We will send offer to you soon!

Q3: What kind of payment do you accept ?

We accept T/T, Paypal, Western Union, Alibaba trade assurance and etc. Please contact us and our salesmen will reply your exactly payment way. Hope we can create a better business relationship with you.

Q4: I can't assure the models of product from catalog, can you choose models for me?

We are the Schneider Distributor in Taiwan, you can get our service at quotation, technique consult, ,ex-stock products, after sales service and etc.
So you can provide specification let us check.

Q5: How to ship my order ? Is it safe?

For small package, we will send it by Express, such as DHL, FedEx, TNT, EMS, OCS. SF. That's a Door to Door service.
For big packages, we will send them by Air or by sea.We will use good packing and ensure the goods safety.

product-1-1

Introduction:



Hello and thank you for your interest in our product, the XACA02. We are dedicated to providing high-quality products to merchants worldwide. In this product introduction, we will discuss the various aspects of our XACA02 and why it is a great product for merchants to consider.



Design:



The XACA02 is a beautifully designed product that is sure to catch the eye of any merchant looking for quality. Our design team has taken great care to ensure perfection in every aspect, from shape and color to materials used. The XACA02 is available in a variety of colors, allowing merchants to choose the perfect option to match their brand or store.



Functionality:



In addition to its appealing design, the XACA02 is incredibly functional. It can be used in various settings, including home, office, and commercial environments. The XACA02 is a wireless charging unit that can charge up to three devices simultaneously, making it ideal for busy merchants who need to stay connected at all times.



Compatibility:



The XACA02 is compatible with a wide range of devices, regardless of the brand. Whether you have an Apple, Samsung, or other brand device, the XACA02 will work seamlessly. Merchants can use the XACA02 to charge multiple devices simultaneously without worrying about compatibility issues.



Ease of Use:



The XACA02 is incredibly easy to use. It has a simple setup process and does not require complicated instructions to follow. Merchants can simply plug in their devices and let the XACA02 do the rest.



Value:



One of the most compelling aspects of the XACA02 is its value. Despite its high-quality design and functionality, the XACA02 is an affordable product. Merchants can purchase multiple units to use throughout their store or office without breaking the bank.



Conclusion:



In conclusion, the XACA02 is a fantastic product for merchants seeking a high-quality, functional, and affordable charging unit. With its beautiful design, compatibility with a wide range of devices, ease of use, and great value, the XACA02 is sure to impress. If you would like to learn more about the XACA02, please do not hesitate to contact us. We are happy to answer any questions and assist you in getting started with this amazing product. Thank you for your time, and we look forward to hearing from you soon.
