Schneider XB5 2-positions Selector Switch XB5AD25
Brand Name: Schneider
Model Number: XB5AD25
Protection Level: Standard
Send Inquiry
Product Details ofSchneider XB5 2-positions Selector Switch XB5AD25

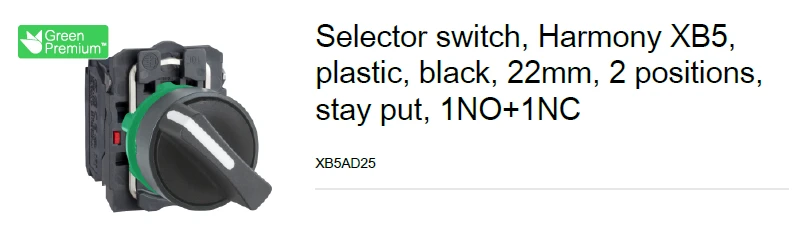

Schneider Selector Switch Harmony XB5AD25
plastic, black, 22mm, 2 positions, 1NO+1NC
Product Description
>> What are the main features of Schneider Selector Switch XB5AD25?
|
Main
|
|
|
Range of product
|
Harmony XB5
|
|
Product or component type
|
Selector switch |
|
Device short name
|
XB5
|
|
Bezel material
|
Dark grey plastic
|
|
Mounting diameter
|
22 mm |
|
Sale per indivisible quantity
|
1 |
|
Shape of signaling unit head |
Round
|
|
Type of operator |
stay put
|
|
Head type |
Standard
|
|
Operator position information |
2 positions 90°
|
|
Operator profile |
Black standard handle
|
|
Contacts type and composition |
1 NO + 1 NC
|
|
Contact operation |
Slow-break
|
|
Connections - terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947- |
|
Terminals description ISO n°1 |
(13-14)NO
|
|
Resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m |
|
Contacts usage |
Standard contacts |
|
Positive opening |
With conforming to EN/IEC 60947-5-1 appendix K |
|
Torque value |
0.14 N.m NO changing electrical state |
|
Mechanical durability |
1000000 cycles |
|
Tightening torque |
0.8…1.2 N.m conforming to EN 60947-1 |
|
Shape of screw head |
Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
|
Contacts material |
Silver alloy (Ag/Ni) |
|
Short-circuit protection |
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
|
[Ith] conventional free air thermal current |
10 A conforming to EN/IEC 60947-5-1 |
|
[Ui] rated insulation voltage |
600 V (pollution degree 3) conforming to EN 60947-1 |
|
[Uimp] rated impulse withstand voltage |
6 kV conforming to EN 60947-1 |
|
[Ie] rated operational current |
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
|
Electrical durability |
1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/ IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/ IEC 60947-5-1 appendix C |
|
Electrical reliability |
Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
|
Device presentation |
Complete product |
>> What condition of the environment could Schneider Selector Switch XB5AD25 be used?
|
Environment
|
|
|
Protective treatment
|
TH |
|
Ambient air temperature for operation |
-40…70 °C |
|
Ambient air temperature for storage |
-40…70 °C |
|
Electrical shock protection class |
Class II conforming to IEC 60536 |
|
IP degree of protection |
IP67 conforming to IEC 60529 IP69 IP69K |
|
NEMA degree of protection |
NEMA 13 NEMA 4X |
|
IK degree of protection |
IK06 conforming to IEC 50102 |
|
Standards |
CSA C22.2 No 14 EN/IEC 60947-5-1 UL 508 EN/IEC 60947-5-4 EN/IEC 60947-1 JIS C8201-5-1 JIS C8201-1 |
|
Vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
|
Shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
|
Product certifications |
UL LROS (Lloyds register of shipping) DNV BV GL CSA |
>> What is the dimension of Schneider Selector Switch XB5AD25?
|
Dimension
|
|
|
Height
|
42 mm
|
|
Width
|
30 mm
|
|
Length
|
70 mm
|
|
Net weight
|
0.043 kg
|
Certifications
Packing & Delivery
FAQ
Q1: Do you have a catalogue? Can you send me the catalogue to have a check of all your product ?
Yes , We have product catalogs. Please inform your requested brand, model, then we will reply by on line or Email to sending the catalog.
Q2: I need your price list of all your products, do you have a price list ?
Please inform exactly brand, series or specification, then we will try to our best to provide price list of products. Because we have so many items, and need to focus your requested. If you don't have modes, we also can provide catalog for reference.
If you want to check any price of our products, please contact us.We will send offer to you soon!
Q3: What kind of payment do you accept ?
We accept T/T, Paypal, Western Union, Alibaba trade assurance and etc. Please contact us and our salesmen will reply your exactly payment way. Hope we can create a better business relationship with you.
Q4: I can't assure the models of product from catalog, can you choose models for me?
We are the Schneider Distributor in Taiwan, you can get our service at quotation, technique consult, ,ex-stock products, after sales service and etc.
So you can provide specification let us check.
Q5: How to ship my order ? Is it safe?
For small package, we will send it by Express, such as DHL, FedEx, TNT, EMS, OCS. SF. That's a Door to Door service.
For big packages, we will send them by Air or by sea.We will use good packing and ensure the goods safety.
For big packages, we will send them by Air or by sea.We will use good packing and ensure the goods safety.
Introduction:
Our company is a leading provider of high-quality products designed to meet the needs of wholesalers and retailers worldwide. We pride ourselves on our commitment to providing customers with innovative products that exceed their expectations in terms of quality and performance. Our latest product, the XB5AD25, is a high-performance, industrial-grade push button switch. In this product introduction, we will delve deeper into the product specifications, features, and benefits, as well as compare it to similar products in the market.
Product Specifications:
The XB5AD25 is a high-performance, industrial-grade push button switch designed for use in a variety of industrial applications. It boasts an impressive range of features that make it ideal for use in tough and challenging environments. Some of the key features of the XB5AD25 include:
- 10 amps, 600-volt AC/DC rating
- Illuminated button for easy identification
- Low power consumption
- Durable construction, capable of withstanding extreme temperatures and harsh environments
- Compact design for easy installation and use
Benefits of the XB5AD25:
The XB5AD25 offers a range of benefits that make it a smart investment for businesses of all sizes. Here are some of the benefits of the XB5AD25 that will help convince merchants:
1. Quality: The XB5AD25 is built to last, with a robust construction that can withstand the toughest environments. The switch is reliable and durable, ensuring that it will continue to function even in the most demanding conditions.
2. Functionality: The XB5AD25 is easy to install and use. It is designed to provide fast and efficient performance, with a low power consumption that is easy on the batteries. The switch is also designed to be compact, ensuring that it can fit into tight spaces without difficulty. Its illuminated button ensures easy identification even in dimly lit workspaces.
3. Affordability: The XB5AD25 is competitively priced compared to other similar products in the market. This makes the switch an affordable choice for businesses of all sizes, allowing them to add functionality to their systems without breaking the bank.
Comparison to Similar Products:
The XB5AD25 stands out from similar products in the market. Here is a comparison between the XB5AD25 and two other popular push button switches:
1. The XB5AD25 vs. the ZB5AS834: The ZB5AS834 is not illuminated, making it difficult to use in dimly lit environments. It also has a lower voltage rating of only 240VAC/DC, compared to the XB5AD25's rating of 600VAC/DC.
2. The XB5AD25 vs. the XB5AT822: The XB5AD25 is more durable than the XB5AT822, able to withstand extreme temperatures and harsh environments. It also has a lower power consumption, making it more cost-effective in the long run.
Conclusion:
The XB5AD25 is a top-grade push button switch that is designed for use in industrial environments. It offers a range of features and benefits that make it stand out from similar products in the market. It is easy to install and use, affordable, and built to last. If you're looking for a push button switch that can provide reliable and efficient performance, the XB5AD25 is the perfect choice.
