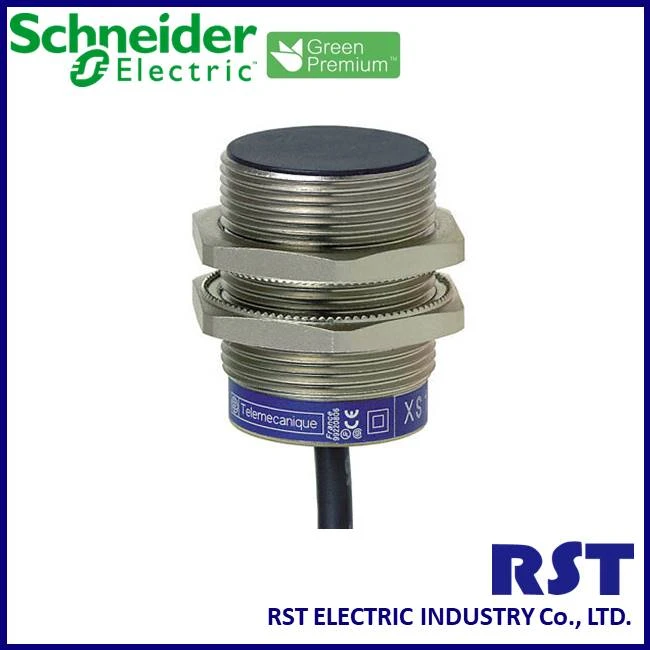

Schneider Inductive Proximity Sensor XS630B1PAL2

XS6 M30, 12...48VDC, L62mm, cable 2 m

banner of XS630B1PAL2

Product Description

>> What are the main features of Schneider Inductive Proximity Sensor XS630B1PAL?

Main
Range of product	Telemecanique Inductive proximity sensors XS
Series name	General purpose
Sensor type	Inductive proximity sensor
Device application	Mobile equipment
Sensor name	XS6
Sensor design	Cylindrical M30
Size	62 mm
Body type	Fixed
Detector flush mounting acceptance	Flush mountable
Material	Metal
Type of output signal	Discrete
Wiring technique	3-wire
[Sn] nominal sensing distance	15 mm
Discrete output function	1 NO
Output circuit type	DC
Discrete output type	PNP
Electrical connection	Cable
Cable length	2 m
[Us] rated supply voltage	12...48 V DC with reverse polarity protection
Switching capacity in mA	<= 200 mA DC with overload and short-circuit protection
IP degree of protection	IP68 double insulation conforming to IEC 60529 IP69K conforming to DIN 4005
Thread type	M30 x 1.5
Detection face	Frontal
Front material	PPS
Enclosure material	Nickel plated brass
Sensing range	> 8...15 mm
Operating zone	0…12 mm
Differential travel	1...15% of Sr
Cable composition	3 x 0.34 mm²
Wire insulation material	PVC
Status LED	Output state: 1 LED (yellow)
Supply voltage limits	10…58 V DC
Switching frequency	<= 500 Hz
Maximum voltage drop	<2 V (closed)
Current consumption	<= 10 mA no-load
Maximum delay first up	10 ms
Maximum delay response	0.6 ms
Maximum delay recovery	1.4 ms
Marking	CE

>> What condition of the environment could Schneider Inductive Proximity Sensor XS630B1PAL be used?

Environment
Product certifications	CSA UL E2
Ambient air temperature for storage	-40…85 °C
Ambient air temperature for operation	-25…70 °C
Vibration resistance	25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27

>> What is the dimension of Schneider Inductive Proximity Sensor XS630B1PAL?

Dimension
Threaded length	52 mm
Length	62 mm
Net weight	0.21 kg

Certifications

product-533-784

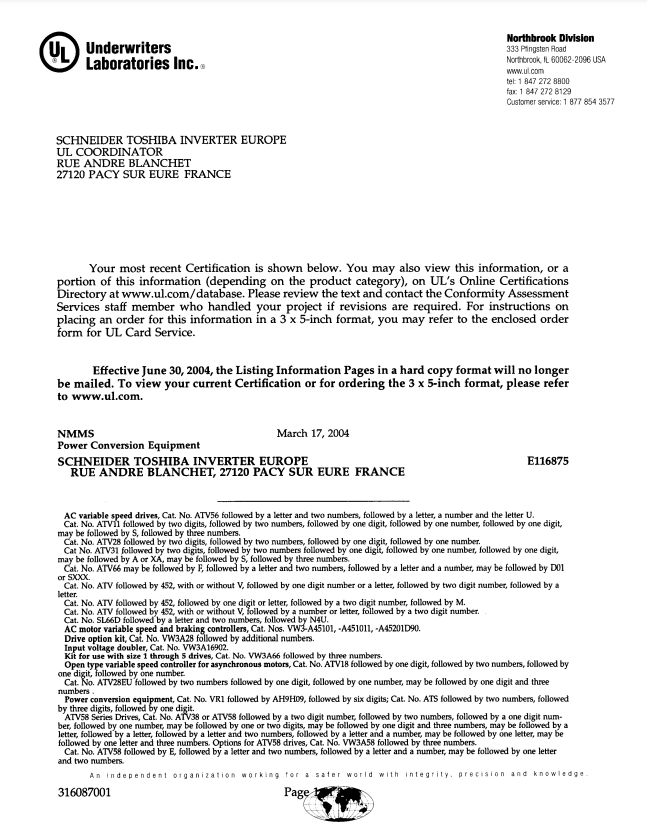

Schneider UL Certification

Schneider TAF Certification

Packing & Delivery

product-549-535

FAQ

Q1: Do you have a catalogue? Can you send me the catalogue to have a check of all your product ?

Yes , We have product catalogs. Please inform your requested brand, model, then we will reply by on line or Email to sending the catalog.

Q2: I need your price list of all your products, do you have a price list ?

Please inform exactly brand, series or specification, then we will try to our best to provide price list of products. Because we have so many items, and need to focus your requested. If you don't have modes, we also can provide catalog for reference.

If you want to check any price of our products, please contact us.We will send offer to you soon!

Q3: What kind of payment do you accept ?

We accept T/T, Paypal, Western Union, Alibaba trade assurance and etc. Please contact us and our salesmen will reply your exactly payment way. Hope we can create a better business relationship with you.

Q4: I can't assure the models of product from catalog, can you choose models for me?

We are the Schneider Distributor in Taiwan, you can get our service at quotation, technique consult, ,ex-stock products, after sales service and etc.

So you can provide specification let us check.

Q5: How to ship my order ? Is it safe?

For small package, we will send it by Express, such as DHL, FedEx, TNT, EMS, OCS. SF. That's a Door to Door service.
For big packages, we will send them by Air or by sea.We will use good packing and ensure the goods safety.

product-1-1

Introducing XS630B1PAL2 - The Perfect Choice for Your Industrial Automation Needs!

XS630B1PAL2 is an advanced industrial automation product designed with premium quality materials and state-of-the-art technology. We proudly present this product as an indispensable component in the world of industrial automation.

XS630B1PAL2 is a top-of-the-line product tailored to meet the demands of modern industrial automation. It stands out from its contemporaries with its compact design, high accuracy, and durability.

One key feature of XS630B1PAL2 is its compact design. Its small form factor allows for easy integration into any industrial automation system, fitting into tight spaces without compromising functionality or performance.

Another notable feature of XS630B1PAL2 is its high accuracy. With cutting-edge technology, this product ensures accuracy within 0.1%. It excels in applications requiring precision.

Durability is a major factor that sets XS630B1PAL2 apart from other industrial automation products. Constructed with high-quality materials, it is resistant to wear and tear, withstanding rough handling and harsh environmental conditions often encountered in industrial automation applications.

XS630B1PAL2 is highly versatile, catering to various industrial automation applications such as distance measurement, object detection, and motion monitoring. It finds utility in diverse industries including automotive, aerospace, energy, and more.

Alongside its impressive features, XS630B1PAL2 offers excellent after-sales service. We provide a warranty period for every XS630B1PAL2 purchased, and our experienced technicians offer prompt and efficient product repair services when needed.

Customer satisfaction is our utmost priority. We understand the importance of reliable products and are committed to delivering exactly that. Our team of experts is always ready to provide engineering support, product recommendations, and any other assistance you may require.

Conclusion

In conclusion, XS630B1PAL2 is an advanced industrial automation product ideal for a wide range of applications. With its compact design, high accuracy, and durability, it delivers optimal performance. We invite you to experience its numerous benefits firsthand. Thank you for choosing us as your preferred industrial automation supplier.
