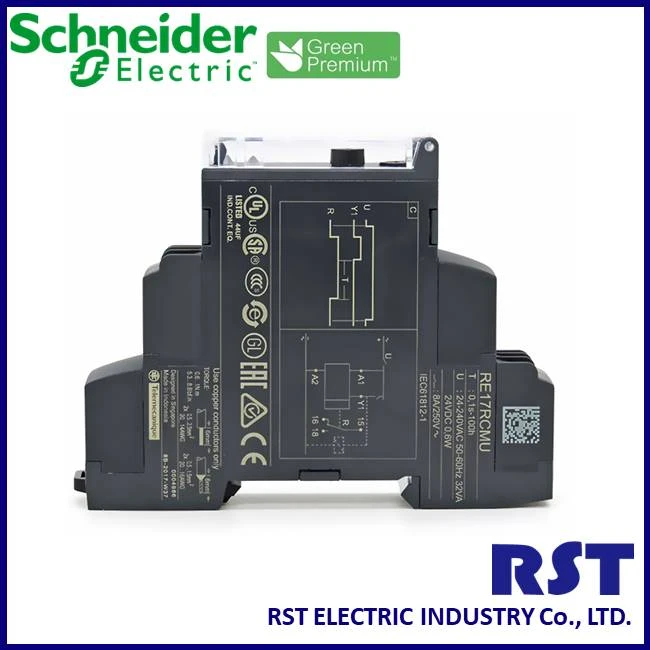

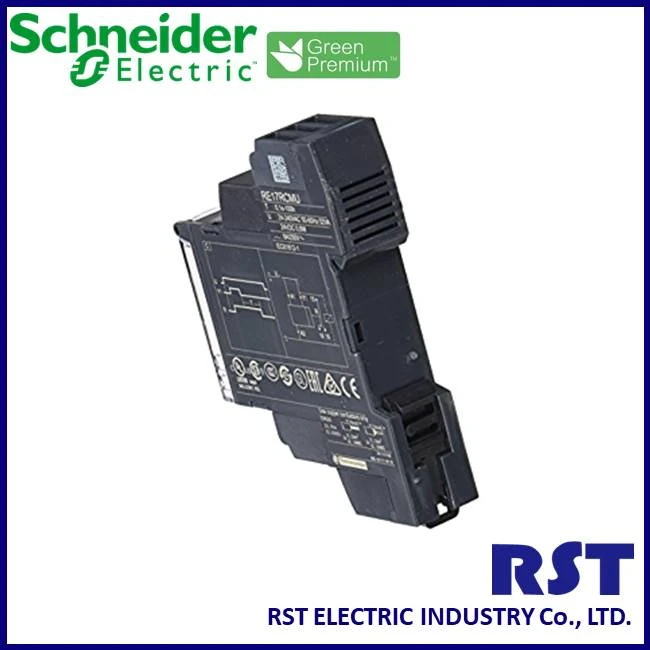

Schneider Time Delay Relay RE17RCMU
Brand Name: Schneider
Model Number: RE17RCMU
Theory: Time Relay
Send Inquiry
Product Details ofSchneider Time Delay Relay RE17RCMU
Schneider Modular Timing Relay RM17RCMU
8A, 1CO, 1s..100h, off delay, 24V DC, 24...240V AC/DC
Product Description
>> What are the main features of Schneider Modular Timing Relay RM17RCMU?
|
Main
|
|
|
Range of product
|
Harmony Timer Relays
|
|
Product or component type
|
Single function relay
|
|
Discrete output type
|
Relay
|
|
Device short name
|
RE17R
|
|
Time delay type
|
Off-delay
|
|
Time delay range
|
6...60 s 1...10 h 1...10 min 6...60 min 0.1...1 s 1...10 s 10...100 h |
|
Nominal output current
|
8 A
|
|
Contacts type and composition
|
1 C/O
|
|
Contacts material
|
Cadmium free |
|
Control type
|
Selector switch front panel
|
|
[Us] rated supply voltage
|
24...240 V AC 50/60 Hz 24 V D |
|
Voltage range
|
0.85...1.1 Us |
|
Supply frequency
|
50...60 Hz +/- 5 % |
|
Release of input voltage
|
10 V
|
|
Connections - terminals
|
Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
|
Tightening torque
|
0.6…1 N.m conforming to IEC 60947-1
|
|
Housing material |
Self-extinguishing |
|
Repeat accuracy
|
+/- 0.5 % conforming to IEC 61812-1 |
|
Temperature drift |
+/- 0.05 %/°C |
|
Voltage drift
|
+/- 0.2 %/V
|
|
Setting accuracy of time delay
|
+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
|
|
Control signal pulse width
|
100 ms with load in parallel typical 30 ms typical |
|
Insulation resistance
|
100 MOhm at 500 V DC conforming to IEC 60664-1
|
|
Response time
|
120 ms on de-energisation typical
|
|
On-load factor
|
100 % |
|
Power consumption in VA
|
0…32 VA at 240 V AC
|
|
Maximum power consumption in W |
0.6 W at 24 V DC |
|
Minimum switching current
|
10 mA at 5 V DC |
|
Maximum switching current
|
8 A AC/DC
|
|
Maximum switching voltage
|
250 V AC |
|
Breaking capacity
|
2000 VA |
|
Operating frequency
|
10 Hz |
|
Electrical durability
|
100000 cycles (8 A at 250 V AC maximum) for resistive load |
|
Mechanical durability
|
10000000 cycles |
|
Dielectric strength
|
2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1 |
|
[Uimp] rated impulse withstand voltage |
5 kV during 1.2/50 μs |
|
Power on delay
|
100 ms |
|
Marking
|
CE |
|
Creepage distance
|
4 kV/3 conforming to IEC 60664-1 |
|
Safety reliability data
|
B10d = 270000 MTTFd = 296.8 years |
|
Mounting position
|
Any position in relation to normal vertical mounting plane |
|
Mounting support
|
35 mm DIN rail conforming to EN/IEC 60715 |
|
Local signalling
|
LED indicator for on steady: relay energised, no timing in progress LED indicator for flashing: timing in progress 80 % ON and 20 % OFF LED indicator for pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L) 5 % ON and 95 % OFF |
|
Functionality
|
Off-delay timing |
|
Compatibility code
|
RE17 |
>> What condition of the environment could Schneider Modular Timing Relay RM17RCMU be used?
|
Environment
|
|
|
Immunity to microbreaks
|
20 ms |
|
Standards
|
EN 61000-6-4 EN 61000-6-2 EN 61000-6-3 2004/108/EC 2006/95/EC IEC 61812-1 EN 61000-6-1 |
|
Product certifications
|
CSA cULus GL |
|
Ambient air temperature for storage |
-30…60 °C
|
|
Ambient air temperature for operation |
-20…60 °C |
|
IP degree of protection
|
IP20 (terminal block) conforming to IEC 60529 IP40 (housing) conforming to IEC 60529 IP50 (front panel) conforming to IEC 60529 |
|
Vibration resistance
|
20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 |
|
Shock resistance
|
15 gn for 11 ms conforming to IEC 60068-2-27 |
|
Relative humidity
|
93 % without condensation conforming to IEC 60068-2-30
|
|
Electromagnetic compatibility
|
Electrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2 Electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-4 1.2/50 μs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-5 1.2/50 μs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5 Conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11 Voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11 Conducted and radiated emissions: , class B, conforming to EN 55022 |
>> What is the dimension of Schneider Modular Timing Relay RM17RCMU?
|
Dimension
|
|
|
Width
|
17.5 mm
|
|
Height
|
90 mm
|
|
Depth
|
72 mm
|
|
Net weight
|
0.07 kg
|
Certifications
