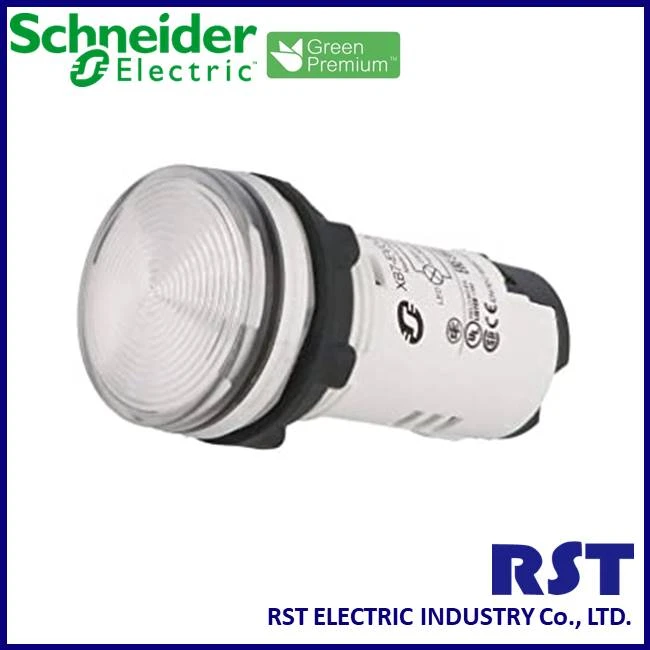

Schneider XB7 White Pilot Light XB7EV07MP
Brand Name: Schneider
Model Number: XB7EV07MP
Protection Level: Standard
Send Inquiry
Product Details ofSchneider XB7 White Pilot Light XB7EV07MP
Schneider Monnolithic Pilot Light XB7EV07MP
plastic, clear, 22mm, integral LED, 230...240V AC
Product Description
>> What are the main features of Schneider Pilot Light XB7EV07MP?
|
Main
|
|
|
Range of product
|
Harmony XB7
|
|
Product or component type
|
Pilot light
|
|
Device short name
|
XB7
|
|
Mounting diameter
|
22 mm
|
|
Sale per indivisible quantity
|
10
|
|
Shape of signaling unit head
|
Round
|
|
Cap/Operator or lens colour
|
Clear |
|
Light source
|
LED |
|
Bulb base
|
Integral LED
|
|
[Us] rated supply voltage
|
230...240 V AC 50/60 Hz
|
|
Device presentation
|
Monolithic product
|
|
Terminals description ISO n°1
|
(X1-X2)PL |
|
Device mounting
|
Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1
|
|
Fixing center
|
>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
|
Fixing mode
|
Fixing nut beneath head: 2…2.4 N.m |
|
Connections - terminals
|
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947- |
|
Tightening torque |
0.8…1.2 N.m conforming to EN 60947-1 |
|
Shape of screw head
|
Cross compatible with JIS No 1 screwdriver Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
|
[Ui] rated insulation voltage
|
250 V (pollution degree 3) conforming to EN/IEC 60947-1
|
|
[Uimp] rated impulse withstand voltage |
6 kV conforming to EN/IEC 60947-1
|
|
Signalling type
|
Steady
|
|
Supply voltage limits
|
195…264 V AC |
|
Current consumption
|
16...20 mA
|
|
Service life
|
70000 h at rated voltage and 25 °C |
>> What condition of the environment could Schneider Pilot Light XB7EV07MP be used?
|
Environment
|
|
|
Protective treatment
|
TH |
|
Ambient air temperature for storage |
-40…70 °C |
|
Ambient air temperature for operation |
-25…55 °C
|
|
Overvoltage category
|
Class II conforming to IEC 60536 |
|
IP degree of protection
|
IP20 (rear face) conforming to IEC 60529 IP65 (front face) conforming to IEC 60529 |
|
NEMA degree of protection
|
NEMA 4 conforming to UL 50 E NEMA 12 conforming to UL 50 E |
|
Standards
|
JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-1 UL 508 EN/IEC 60947-5-1 JIS C8201-1 |
|
Vibration resistance
|
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
|
Shock resistance
|
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
|
Electromagnetic compatibility
|
Disturbing field emission class B conforming to EN 55011 |
>> What is the dimension of Schneider Pilot Light XB7EV07MP?
|
Dimension
|
|
|
Height
|
29 mm
|
|
Width
|
29 mm
|
|
Depth
|
54 mm
|
|
Net weight
|
0.02 kg
|
