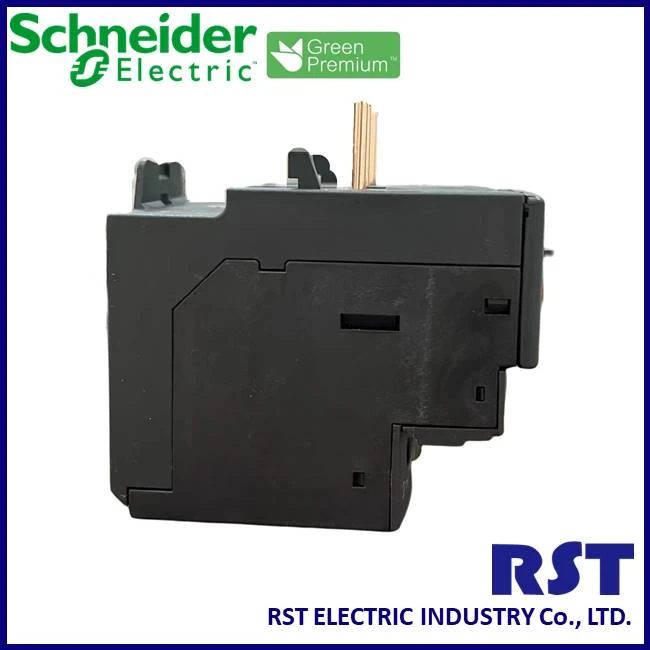

Schneider thermal overload relays LRD10

3P, 4...6A, class 10A with new design!

Product Description

>> What are the main features of Schneider thermal overload relays LRD10?

Main
Range	TeSys TeSys Deca
Range of product	TeSys D TeSys Deca
Product or component type	Differential thermal overload relay
Device short name	LRD
Relay application	Motor protection
Product compatibility	LC1D09 LC1D32 LC1D38 LC1D12 LC1D18 LC1D25
Network type	DC AC
Thermal overload class	Class 10A conforming to IEC 60947-4-1
Thermal protection adjustment range	4…6 A
[Ui] rated insulation voltage	Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1
Network frequency	0...400 Hz
Mounting support	Plate, with specific accessories Rail, with specific accessories Under contactor
Tripping threshold	1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Auxiliary contact composition	1 NO + 1 NC
[Ith] conventional free air thermal current	5 A for signalling circuit
Permissible current	3 A at 120 V AC-15 for signalling circuit 0.22 A at 125 V DC-13 for signalling circuit
[Ue] rated operational voltage	690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Associated fuse rating	4 A gG for signalling circuit 4 A BS for signalling circuit
[Uimp] rated impulse withstand voltage	6 kV
Phase failure sensitivity	Tripping current 130 % of Ir on two phase, the last one at 0
Control type	Red push-button: stop Blue push-button: reset
Temperature compensation	-20…60 °C
Connections - terminals	Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² solid without cable end
Tightening torque	Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals

>> What condition of the environment could Schneider thermal overload relays LRD10 be used?

Environment
Climatic withstand	conforming to IACS E10
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-20…60 °C without derating conforming to IEC 60947-4-1
Ambient air temperature for storage	-60…70 °C
Flame retardance	V1 conforming to UL 94
Mechanical robustness	Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
Dielectric strength	1.89 kV at 50 Hz conforming to IEC 60947-1
Standards	EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495
Product certifications	IEC UL CSA CCC EAC BV RINA DNV-GL LROS (Lloyds register of shipping) ATEX INERIS UKCA

>> What is the dimension of Schneider thermal overload relayes LRD10?

Dimension
Height	66 mm
Width	45 mm
Depth	70 mm
Net weight	0.124 kg

Q1: Do you have a catalogue? Can you send me the catalogue to have a check of all your product ?

Yes , We have product catalogs. Please inform your requested brand, model, then we will reply by on line or Email to sending the catalog.

Q2: I need your price list of all your products, do you have a price list ?

Please inform exactly brand, series or specification, then we will try to our best to provide price list of products. Because we have so many items, and need to focus your requested. If you don't have modes, we also can provide catalog for reference.

If you want to check any price of our products, please contact us.We will send offer to you soon!

Q3: What kind of payment do you accept ?

We accept T/T, Paypal, Western Union, Alibaba trade assurance and etc. Please contact us and our salesmen will reply your exactly payment way. Hope we can create a better business relationship with you.

Q4: I can't assure the models of product from catalog, can you choose models for me?

We are the Schneider Distributor in Taiwan, you can get our service at quotation, technique consult, ,ex-stock products, after sales service and etc.

So you can provide specification let us check.

Q5: How to ship my order ? Is it safe?

For small package, we will send it by Express, such as DHL, FedEx, TNT, EMS, OCS. SF. That's a Door to Door service.
For big packages, we will send them by Air or by sea.We will use good packing and ensure the goods safety.

product-1-1

Introduction

LRD10 is a high-quality product designed to meet the needs of merchants worldwide. Our product is designed to provide superior performance and durability, making it the perfect solution for those who want to enhance their business. In this product introduction, we will discuss the various aspects of LRD10 and how it can benefit your company.

Design

Our product is designed to provide excellent performance and durability, and it is made with high-quality materials that ensure long-lasting use. The design of LRD10 is sleek and modern, making it an attractive addition to any store. When customers see the product, they will be drawn to its unique design, and this can help increase sales for merchants who stock it.

Durability

One of the most important aspects of LRD10 is its durability. It is made with high-quality materials that are designed to withstand wear and tear, ensuring that it can be used for an extended period of time. This durability makes LRD10 a cost-effective solution for merchants who want to provide their customers with a reliable product that is worth their investment.

Performance

LRD10 is designed to provide superior performance, making it an ideal choice for merchants looking for a high-quality product. It features advanced technology that enables it to perform at its best, ensuring that it provides reliable results. The performance of LRD10 is one of its most significant selling points, and it can help merchants differentiate themselves from their competitors.

Versatility

LRD10 is an incredibly versatile product that can be used in a variety of settings. It can be used in retail stores, restaurants, or other businesses that require a reliable product that can perform consistently. The versatility of LRD10 means that it can be used to enhance various types of businesses, allowing merchants to target a wide range of customers.

Ease of Use

LRD10 is incredibly easy to use, which makes it ideal for merchants who do not want to spend a lot of time training their staff. It features an intuitive design that allows users to operate it with ease, and this increases its appeal to merchants who want a hassle-free solution.

Reliability

Reliability is one of the most important factors that merchants consider when choosing a product to stock. LRD10 is a reliable product that is designed to meet high standards of quality and performance. Merchants can trust that LRD10 will work consistently and provide their customers with an excellent experience every time.

Pricing

We offer LRD10 at a competitive price designed to meet the needs of merchants worldwide. Our pricing structure ensures that our product is affordable and accessible to a wide range of customers. Merchants can purchase LRD10 in bulk, which further reduces the overall cost, making it an ideal solution for those looking to maximize their profits.

Conclusion

LRD10 is a high-quality product that can benefit merchants in a variety of ways. Its unique design, durability, performance, versatility, ease of use, reliability, and competitive pricing make it a top choice for those looking to enhance their business. We are committed to providing our customers with the best products and services, and LRD10 is no exception. We invite you to explore the many benefits of LRD10 and experience the difference that it can make for your business.
