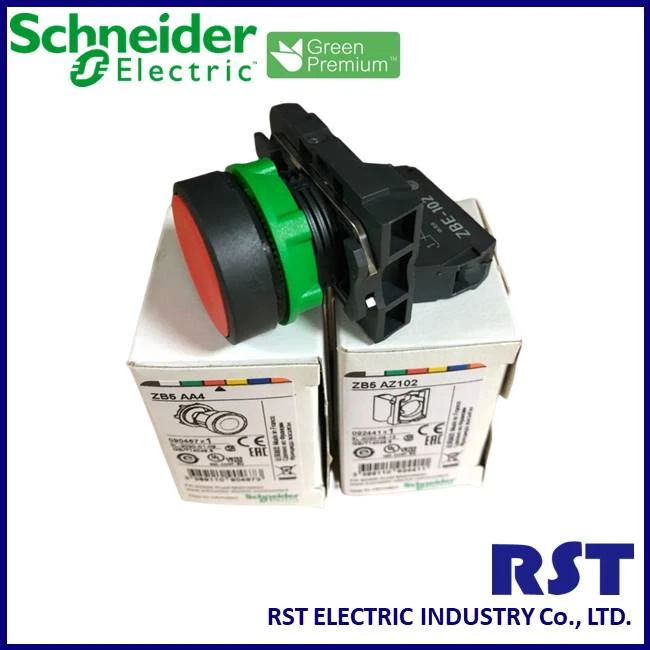

Schneider XB5 Red Push Button XB5AA42
Brand Name: Schneider
Model Number: XB5AA42
Protection Level: Standard
Send Inquiry
Product Details ofSchneider XB5 Red Push Button XB5AA42
Schneider Push Button XB5AA42
Harmony XB5, plastic, flush, red, 22mm 1NC
Product Description
>> What are the main features of Schneider Push Button XB5AA42?
|
Main
|
|
|
Range of product
|
Harmony XB5
|
|
Product or component type
|
Push-button |
|
Device short name
|
XB5
|
|
Bezel material
|
Plastic Dark grey plasti |
|
Fixing collar material
|
Plastic |
|
Mounting diameter
|
22 mm |
|
Sale per indivisible quantity
|
1 |
|
Shape of signaling unit head |
Round
|
|
Type of operator |
spring return
|
|
Head type |
Standard
|
|
Operator profile |
Red flush, unmarked
|
|
Contacts type and composition |
1 NC
|
|
Contact operation |
Slow-break
|
|
Connections - terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947- |
|
Terminals description ISO n°1 |
(21-22)NC
|
|
Resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m |
|
Contacts usage |
Standard contacts |
|
Positive opening |
With conforming to EN/IEC 60947-5-1 appendix K |
|
Operating travel |
1.5 mm (NC changing electrical state) 4.3 mm (total travel) |
|
Operating force |
3.5 N NC changing electrical state |
|
Mechanical durability |
10000000 cycles |
|
Tightening torque |
0.8…1.2 N.m conforming to EN 60947-1 |
|
Shape of screw head |
Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
|
Contacts material |
Silver alloy (Ag/Ni) |
|
Short-circuit protection |
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
|
[Ith] conventional free air thermal current |
10 A conforming to EN/IEC 60947-5-1 |
|
[Ui] rated insulation voltage |
600 V (pollution degree 3) conforming to EN 60947-1 |
|
[Uimp] rated impulse withstand voltage |
6 kV conforming to EN 60947-1 |
|
[Ie] rated operational current |
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
|
Electrical durability |
1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/ IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/ IEC 60947-5-1 appendix C |
|
Electrical reliability |
Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
|
Device presentation |
Complete product |
|
Customizable |
No 1 |
|
GCR BRIDGE |
XB5AACUST01 |
|
Compatibility code |
XB5 |
>> What condition of the environment could Schneider Push Button XB5AA42 be used?
|
Environment
|
|
|
Protective treatment
|
TH |
|
Ambient air temperature for operation |
-40…70 °C |
|
Ambient air temperature for storage |
-40…70 °C |
|
Electrical shock protection class |
Class II conforming to IEC 60536 |
|
IP degree of protection |
IP66 conforming to IEC 60529 IP67 IP69 IP69K |
|
NEMA degree of protection
|
NEMA 13 NEMA 4X |
|
IK degree of protection |
IK03 conforming to IEC 50102 |
|
Standards |
EN/IEC 60947-1 CSA C22.2 No 14 JIS C8201-5-1 UL 508 EN/IEC 60947-5-1 EN/IEC 60947-5-4 JIS C8201-1 |
|
Vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
|
Shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
|
Product certifications |
UL listed BV GL CSA LROS (Lloyds register of shipping) DNV RINA |
>> What is the dimension of Schneider Push Button XB5AA42?
|
Dimension
|
|
|
Height
|
42 mm
|
|
Width
|
30 mm
|
|
Length
|
52 mm
|
|
Net weight
|
0.037 kg
|
