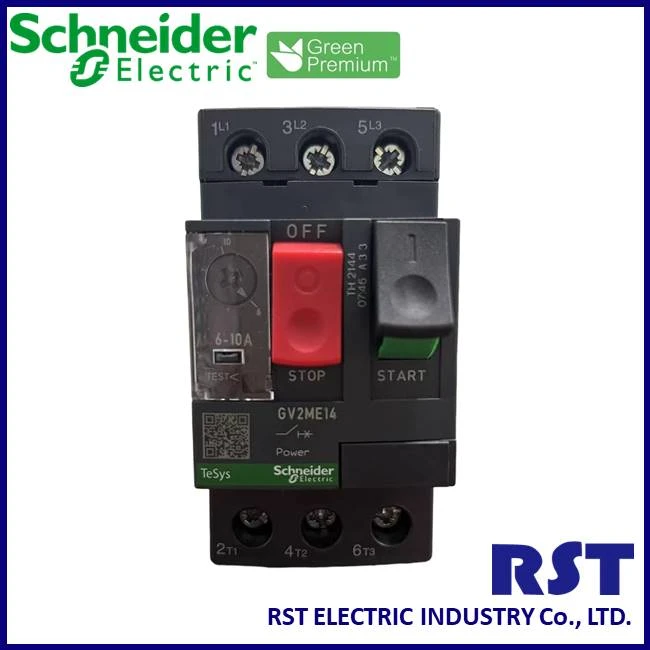

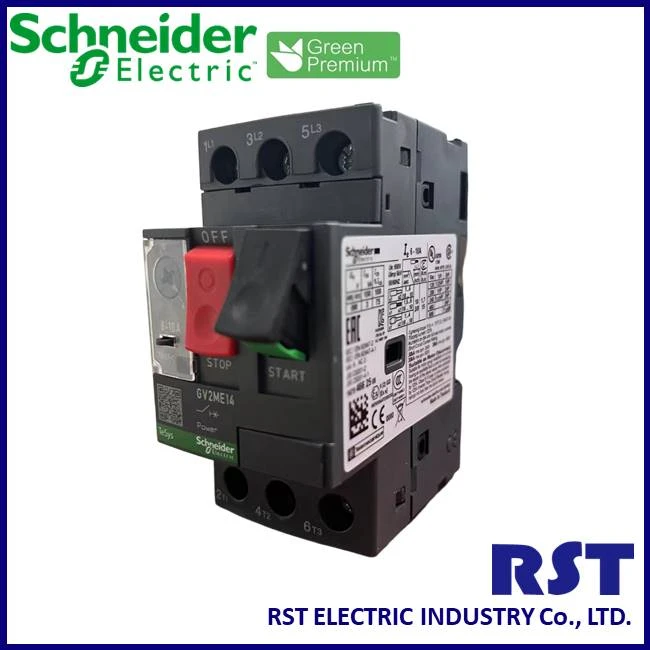

Schneider motor circuit breaker GV2ME14 3P 6...10A

Introduction

GV2ME14 is a high-quality circuit breaker designed to protect your equipment from electrical overload and short circuits. We assure you that our product offers efficient, safe, and reliable electrical protection. GV2ME14 is versatile and caters to a wide range of equipment, making it an appealing investment for merchants seeking dependable electrical protection solutions.

Features

Longevity and durability: Merchants can confidently invest in a product that delivers reliable performance over an extended period. Constructed with top-quality materials, our circuit breaker is resistant to wear and tear and can withstand harsh environmental conditions. Moreover, it can be easily installed in equipment without complex setup processes.
Compact design: The customized design of the GV2ME14 allows for compact installation, making it an ideal choice for businesses seeking space-saving solutions.
Precision trip units: Ensuring secure and accurate opening in the event of overload or short circuit conditions. This feature is particularly beneficial for merchants who value equipment resilience. The circuit breaker is an excellent investment that ensures your equipment operates within defined limits, minimizing the risk of apparatus malfunction due to electrical overload.
Easy to operate: Merchants do not need to be experts in electrical installations or protection to use our product. We have simplified the installation process and designed our product to be user-friendly, enabling easy integration with equipment and ensuring smooth operation.

Products Description

specification of schneider motor circuit breaker GV2ME14:

Range of product	TeSys GV2
Range	TeSys Deca TeSys Deca
Device short name	GV2ME
Product name	TeSys GV2 TeSys Deca
Product or component type	Motor circuit breaker
Device application	Motor protection
Trip unit technology	Thermal-magnetic
Poles description	3P
Network type	AC
Utilisation category	AC-3 conforming to IEC 60947-4-1 Category A conforming to IEC 60947-2
Network frequency	50/60 Hz conforming to IEC 60947-4-1
Fixing mode	35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate)
Operating position	Any position
Motor power kW	3 kW at 400/415 V AC 50/60 Hz 4 kW at 400/415 V AC 50/60 Hz 4 kW at 500 V AC 50/60 Hz 5.5 kW at 690 V AC 50/60 Hz 7.5 kW at 690 V AC 50/60 Hz 5.5 kW at 500 V AC 50/60 Hz
Breaking capacity	100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
[Ith] conventional free air thermal current	100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
Control type	Push-button
[In] rated current	10 A
Thermal protection adjustment range	6...10 A
Magnetic tripping current	138 A
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Ith] conventional free air thermal current	10 A conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2
Power dissipation per pole	2.5 W
Mechanical durability	100000 cycles
Electrical durability	100000 cycles for AC-3 at 415 V at 415 V
Maximum operating rate	25 cyc/h
Rated duty	Continuous conforming to IEC 60947-4-1
Tightening torque	1.7 N.m on screw clamp terminals
Mechanical robustness	Shocks: 30 Gn conforming to IEC 60068-2-27 Vibrations: 5 Gn, 5...150 Hz conforming to IEC 60068-2-6
Phase failure sensitivity	Yes conforming to IEC 60947-4-1
Colour	Dark grey
Suitability for isolation	Yes conforming to IEC 60947-1 § 7-1-6

conditions of environment schneider motor circuit breaker GV2ME14 be used:

Standards	EN/IEC 60947-2 EN/IEC 60947-4-1
Product certifications	CCC UL CSA EAC ATEX BV LROS (Lloyds register of shipping) UKCA DNV-GL RINA
Climatic withstand	conforming to IACS E10
IK degree of protection	IK04
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for storage	-40…80 °C
Fire resistance	960 °C conforming to IEC 60695-2-11
Operating altitude	2000 m
Ambient air temperature for operation	-20…60 °C
